NEW “Mo’ Mo’ Better!” Bar End Mirrors

$150.00

Clear
SKU: N/A Categories: , ,

Description

Over eight years I have been trying to create these bar end mirrors that are loose copies of a custom aluminum Harley mirror. I have been thru all sorts of configurations and processes.

Well, today, 5/26/21 I am launching the Mo’ Mo’ Better Mirrors. Until today I have been in search of the Holy Mirror Process, I have finally have these dialed!

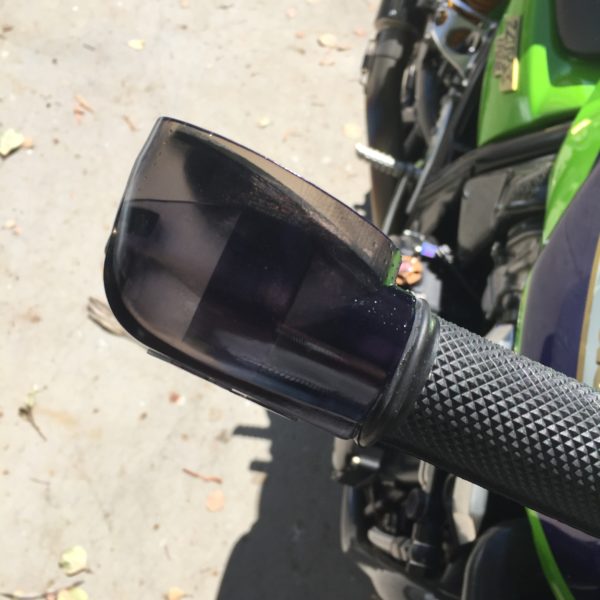

These are Resin Printed with Siraya “Build” Smokey Black resin. I have them in Satin Black, Gloss Black and for the exhibitionist in you, clear coated Smokey Black Resin See-Thru Transparent, affectionately called “Tranny”.

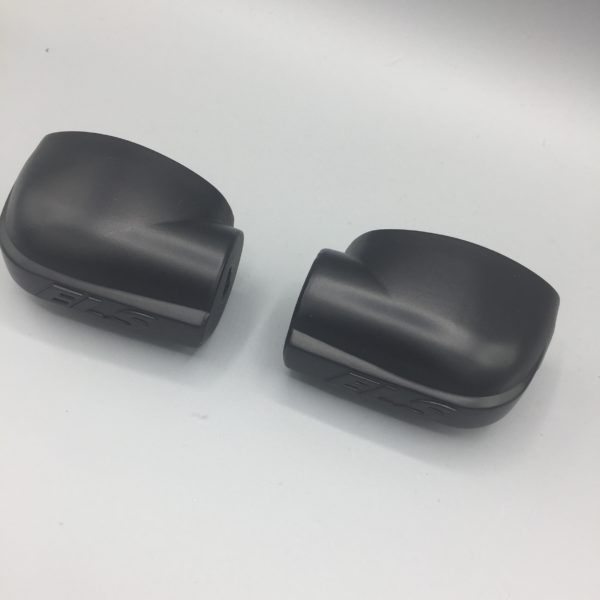

The most popular will be the Satin Black ones. They look incredible!

***All Mirror orders will be Satin Black by default. If you want Glass Black or Tranny, choose “Other, Please Specify” and specify on the order page, PayPal comment or an email.***

They come with two Allen wrenches to adjust them. Most guys set their mirrors once and , unless they are bumped hard, that is it. If your load varies, you can adjust them up/down a bit without an Allen. These mirrors are not much wider than the stock bar end weights.

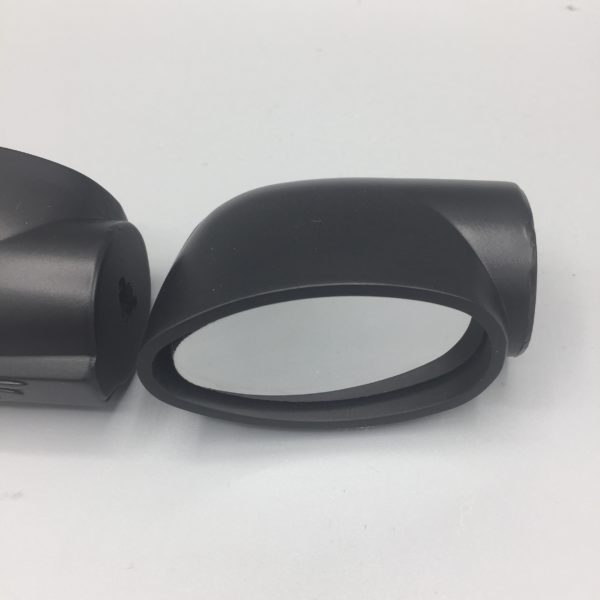

The mirror glass is convex “Right Hand Mirror” car mirror glass cut on a waterjet to shape.  The mirror cut is damn good now.

I will supply bar end machined aluminum plugs w/M6 thread and a tube of Loctite 609 to anchor them in your bars. Be sure to put in the text box your bar inner diameter(s) and color preference.

Stock handlebars I have a really ingenious setup for, instructions are below.

Allow up to two weeks till shipment.  I’ll try to keep up, but probably won’t be able to 🙂

Stock Bar Mount Instructions :

  1. Insert M5 x M10 washer in outboard end of mirror

  2. Insert M5 x 80mm Allen capscrew into outboard end of mirror.

  3. Use tube of included 609 LocTite on M8 adapter and screw into bar end with a 1/4” screwdriver to be flush with the bar end.

  4. Let dry in sun, heat with hairdryer or let sit for several hours to “set” the LocTite.

  5. Two starwashers are included. Use either, or both, as needed.

  6. Tighten snugly, but so you can still adjust mirror up/down as needed

  7. Hole with plastic Phillips heat screw is the mirror pivot and deos not need to be touched.

  8. Small hole has a M4 setscrew with a 2mm allen wrench included. Loosen a few turns, adjust mirror in/out.

  9. Tighten setscrew enough so you cannot adjust it and it does not rattle.

  10. These are 3D Printed PETG Plastic mirror housings, they are not delicate, but please use common sense with the Allen screw tightnesses.

  11. To remove the adapter at a later date, the end of the bar will need to be heated with a propane torch to 450º F to soften the Loctite.

  12. Please call with any questions 602-397-4869



WARNING: ELS Products MAY CONTAIN, or be Made With, Patented Parts, Tools, Components and/or Apparati. Manufacturing Facility DOES Contain Nuts.

Additional information

Weight .75 lbs
Type Handlebars

Stock Bars, Aftermarket Steel Bars 0.730" id, Aftermarket Aluminum Bars 0.550" id, Other Please Specify
